Prime Number Generation


Prime numbers. Who doesn’t love them? They have a special place in mathemathics and also very useful in many areas, especially in cryptography.

Since I know there are some repetitive patterns about primes, I started out writing all numbers from 1 to 120 on a paper.


I segmented the number in partitions of 30 because the first 3 prime numbers 2, 3 and 5 have a product of 30, and this pattern repeat itself since no other prime can have 2, 3, or 5 as a factor.

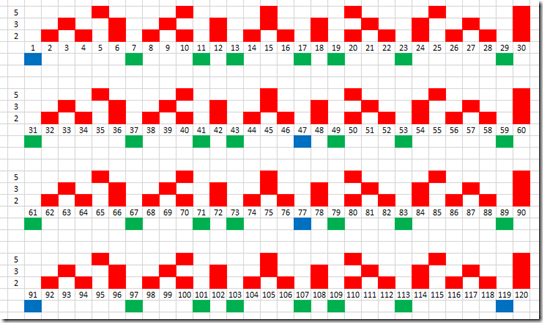

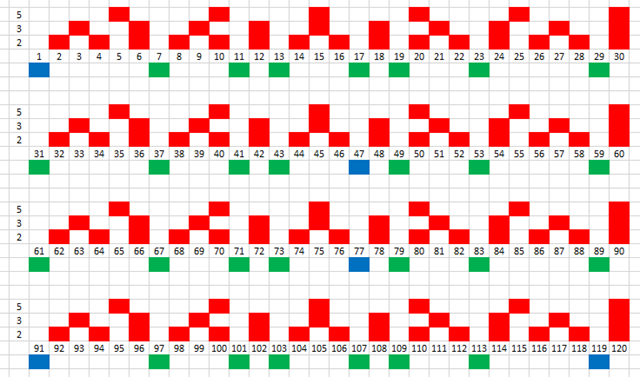

As you can see in the image above, the red blocks are the numbers that are definately not a prime number. Left are the green and blue numbers that are possible prime numbers candidates. As you can see, there are now only 8 candidates in each partition. In reality there are only 7 since at least one possible prime number candidate is false.

1 is per definition not a prime number, 47 is the product of 7 and 7, 77 is the product of 7 and 11, 91 is the product of 7 and 13, and last 119 is the product of 7 and 17. With this information, I only have to test 8 of 30 numbers in each partition, ie only 26.67% of the numbers, a significant improvement.

I decided that creating a certain number of partitions up to the wanted prime number should be enough. Further, I don’t have to check 2, 3, and 5 because these numbers already have been used to set the partition size (named x).

The first number I have to check is 7 (x – 23). The following numbers are 11 (x – 19), 13 (x – 17), 17 (x – 13), 19 (x- 11), 23 (x – 7) and 29 (x – 1).

But since I have offset the sequence by seven numbers I have have to include 31 (x + 1). Now I have all my prime number candicates and I save these in a temporary table. If I for example want to display all prime numbers up to 1 000 000, I only have to store 266 672 prime numbers candidates.

Now when I have all my prime number candidates, all I have to do is to check of there exists a prime number as a factor of the larger prime number candidate. And it is common knownledge you ony have to check for a factor up to the size of square root of the largets prime number.

This is the final code to produce prime numbers very fast.

CREATE TABLE    #Numbers
                (
                        PrimeCandidate INT NOT NULL,
                        PrimalityTest BIGINT PRIMARY KEY CLUSTERED
                );

DECLARE @MaxPrime BIGINT = 1000000;

WITH n0(p)
AS (
        SELECT  1 UNION ALL
        SELECT  1
), n1(p)
AS (
        SELECT          1
        FROM            n0 AS a
        CROSS JOIN      n0 AS b
), n2(p)
AS (
        SELECT          1
        FROM            n1 AS a
        CROSS JOIN      n1 AS b
), n3(p)
AS (
        SELECT          1
        FROM            n2 AS a
        CROSS JOIN      n2 AS b

), n4(p)
AS (
        SELECT          1
        FROM            n3 AS a
        CROSS JOIN      n3 AS b
), n5(p)
AS (
        SELECT          1
        FROM            n4 AS a
        CROSS JOIN      n4 AS b
)
INSERT          #Numbers
                (
                        PrimeCandidate,
                        PrimalityTest
                )
SELECT          f.PrimeCandidate,
                f.PrimeCandidate * f.PrimeCandidate AS PrimalityTest
FROM            (
                        SELECT  TOP (1 + @MaxPrime / 30)
                                30 * ROW_NUMBER() OVER (ORDER BY p) AS Segment
                        FROM    n5
                ) AS v(Segment)
CROSS APPLY     (
                        VALUES  (v.Segment 23),
                                (v.Segment 19),
                                (v.Segment 17),
                                (v.Segment 13),
                                (v.Segment 11),
                                (v.Segment   7),
                                (v.Segment   1),
                                (v.Segment +  1)
                ) AS f(PrimeCandidate)
WHERE           f.PrimeCandidate <= @MaxPrime;

SELECT  Prime
FROM    (
                VALUES  (2),
                        (3),
                        (5)
        ) AS v(Prime)
WHERE   Prime <= @MaxPrime

UNION ALL

SELECT  n.PrimeCandidate AS Prime
FROM    #Numbers AS n
WHERE   NOT EXISTS      (
                                SELECT  *
                                FROM    #Numbers AS p
                                WHERE   p.PrimalityTest <= n.PrimeCandidate
                                        AND n.PrimeCandidate % p.PrimeCandidate = 0
                        );

DROP TABLE      #Numbers;

This algorithm produces all prime numbers (78 498) up to 1 000 000 in less than 1.5 seconds on my laptop. I have tried to include 7 as base prime number to increase the partition size to 210, but the 48 prime number candidates (22.86%) didn’t improve the performance much.

CREATE TABLE    #Numbers
                (
                        PrimeCandidate INT NOT NULL,
                        PrimalityTest BIGINT PRIMARY KEY CLUSTERED
                );

DECLARE @MaxPrime BIGINT = 1000000;

WITH n0(p)
AS (
        SELECT  1 UNION ALL
        SELECT  1
), n1(p)
AS (
        SELECT          1
        FROM            n0 AS a
        CROSS JOIN      n0 AS b
), n2(p)
AS (
        SELECT          1
        FROM            n1 AS a
        CROSS JOIN      n1 AS b
), n3(p)
AS (
        SELECT          1
        FROM            n2 AS a
        CROSS JOIN      n2 AS b

), n4(p)
AS (
        SELECT          1
        FROM            n3 AS a
        CROSS JOIN      n3 AS b
), n5(p)
AS (
        SELECT          1
        FROM            n4 AS a
        CROSS JOIN      n4 AS b
)
INSERT          #Numbers
                (
                        PrimeCandidate,
                        PrimalityTest
                )
SELECT          f.PrimeCandidate,
                f.PrimeCandidate * f.PrimeCandidate AS PrimalityTest
FROM            (
                        SELECT  TOP (1 + @MaxPrime / 210)
                                210 * ROW_NUMBER() OVER (ORDER BY p) AS Segment
                        FROM    n5
              ) AS v(Segment)
CROSS APPLY     (
                        VALUES  (v.Segment 199),
                                (v.Segment 197),
                                (v.Segment 193),
                                (v.Segment 191),
                                (v.Segment 187),
                                (v.Segment 181),
                                (v.Segment 179),
                                (v.Segment 173),
                                (v.Segment 169),
                                (v.Segment 167),
                                (v.Segment 163),
                                (v.Segment 157),
                                (v.Segment 151),
                                (v.Segment 149),
                                (v.Segment 143),
                                (v.Segment 139),
                                (v.Segment 137),
                                (v.Segment 131),
                                (v.Segment 127),
                                (v.Segment 121),
                                (v.Segment 113),
                                (v.Segment 109),
                                (v.Segment 107),
                                (v.Segment 103),
                                (v.Segment 101),
                                (v.Segment   97),
                                (v.Segment   89),
                                (v.Segment   83),
                                (v.Segment   79),
                                (v.Segment   73),
                                (v.Segment   71),
                                (v.Segment   67),
                                (v.Segment   61),
                                (v.Segment   59),
                                (v.Segment   53),
                                (v.Segment   47),
                                (v.Segment   43),
                                (v.Segment   41),
                                (v.Segment   37),
                                (v.Segment   31),
                                (v.Segment   29),
                                (v.Segment   23),
                                (v.Segment   19),
                                (v.Segment   17),
                                (v.Segment   13),
                                (v.Segment   11),
                                (v.Segment    1),
                                (v.Segment +   1)
                ) AS f(PrimeCandidate)
WHERE           f.PrimeCandidate <= @MaxPrime;

SELECT  Prime
FROM    (
                VALUES  (2),
                        (3),
                        (5),
                        (7)
        ) AS v(Prime)
WHERE   Prime <= @MaxPrime

UNION ALL

SELECT  n.PrimeCandidate AS Prime
FROM    #Numbers AS n
WHERE   NOT EXISTS      (
                                SELECT  *
                                FROM    #Numbers AS p
                                WHERE   p.PrimalityTest <= n.PrimeCandidate
                                        AND n.PrimeCandidate % p.PrimeCandidate = 0

                        );

DROP TABLE      #Numbers;
